Z Axis Carriage Assembly

Written By: Tom Wilkie (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

5

Time Required

Suggest a time??

Sections

1

Flags

3

In Progress

In Progress

This guide is currently being written. Reload periodically to see the latest changes.

User-Contributed Guide

User-Contributed Guide

This guide is not managed by the site's staff.

Private

Private

This guide will not appear in search results and can only be viewed by team members!

  1. MINI-z-carriage-front

    • MINI-z-carriage-front

    • MINI-z-carriage-rear

  2. 2 x M3n nuts

    • 2 x M3n nuts

    • 10 x M3nS nuts

    • 6 x M3 12mm

    • 2 x M3 20mm

    • 4 x M3 40mm (2 missing from pic)

  3. X stepper motor

    • X stepper motor

    • GT2-16 pulley

    • Feed screw nut

    • 2 x LM10LUU bearings

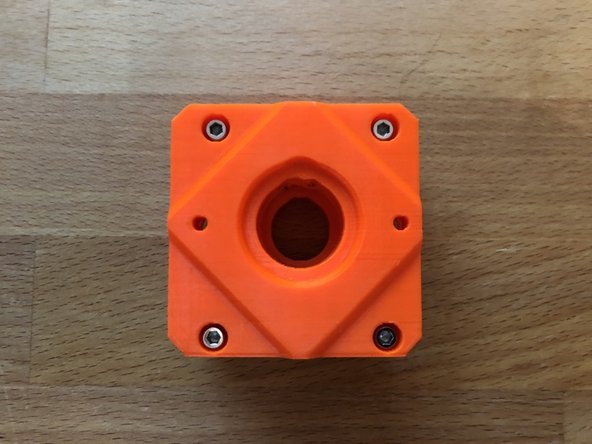

  4. Insert 8 x M3nS in to the top and bottom of the z-carriage-front Insert 1 x M3nS into the side of the z-carriage front Insert 4 x M3 12mm into the front of the z-carriage-front.

    • Insert 8 x M3nS in to the top and bottom of the z-carriage-front

    • Insert 1 x M3nS into the side of the z-carriage front

    • Insert 4 x M3 12mm into the front of the z-carriage-front.
