Z Axis Carriage Assembly

MINI-z-carriage-front

MINI-z-carriage-rear

2 x M3n nuts

10 x M3nS nuts

6 x M3 12mm

2 x M3 20mm

4 x M3 40mm (2 missing from pic)

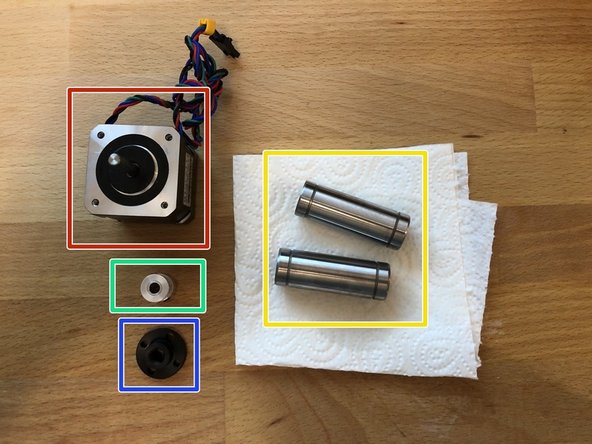

X stepper motor

GT2-16 pulley

Feed screw nut

2 x LM10LUU bearings

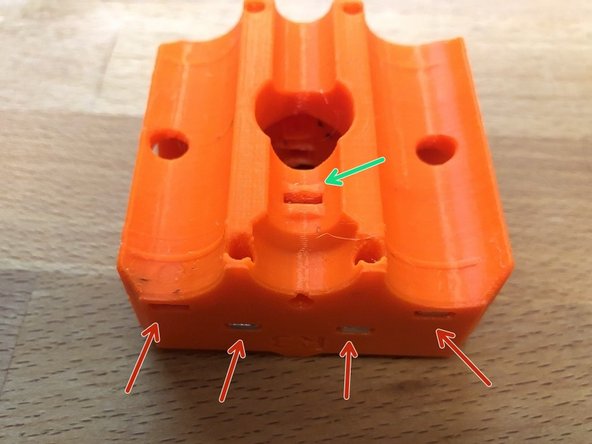

Insert 8 x M3nS in to the top and bottom of the z-carriage-front

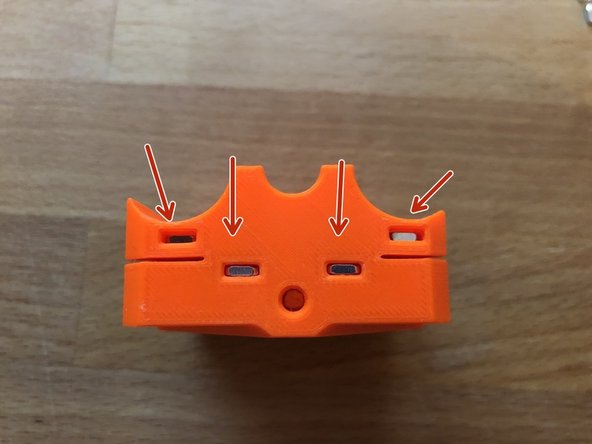

Insert 1 x M3nS into the side of the z-carriage front

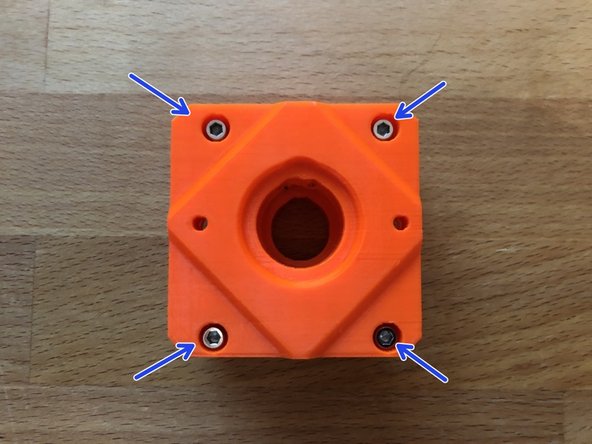

Insert 4 x M3 12mm into the front of the z-carriage-front.

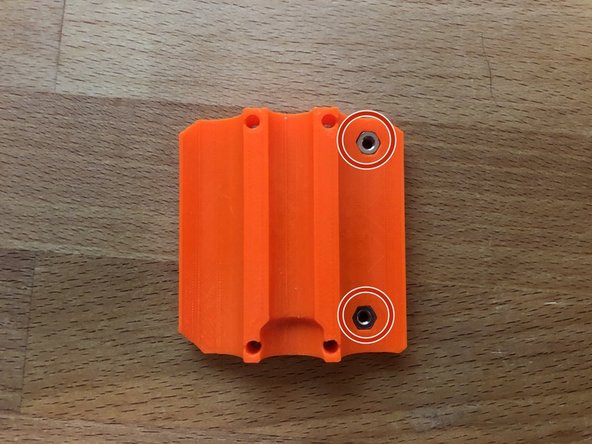

Insert 2 x M3n into the z-carriage-rear

Insert 1 x M3n into the z-carriage-rear

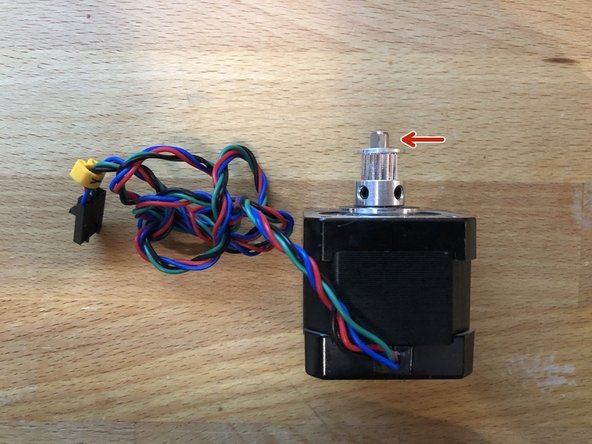

Secure the GT2-16 to the X stepper shaft, leaving 4.8mm of shaft exposed at the end.

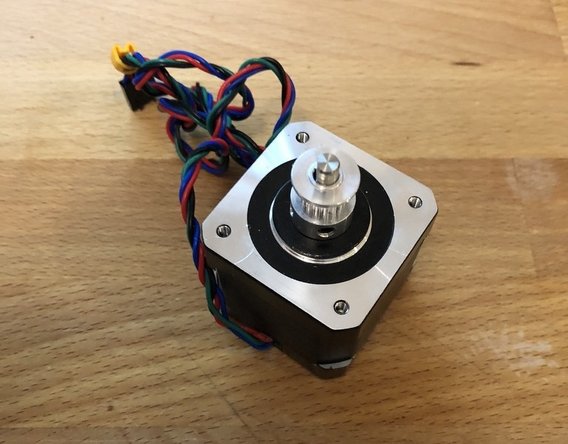

Ensure one of the grub screws is aligned with the flat of the shaft.

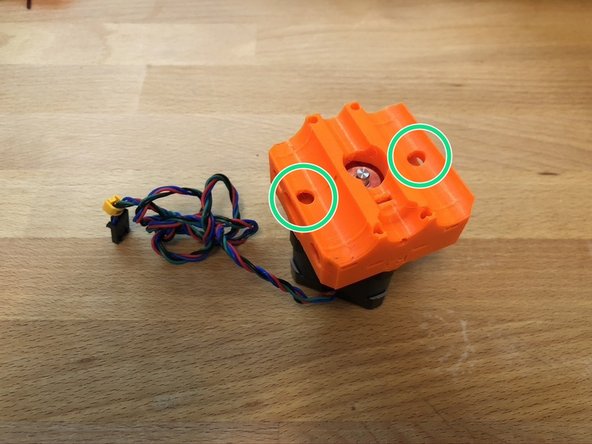

Attach the stepper to the z-carriage-front using 2 x M3 12mm screws.

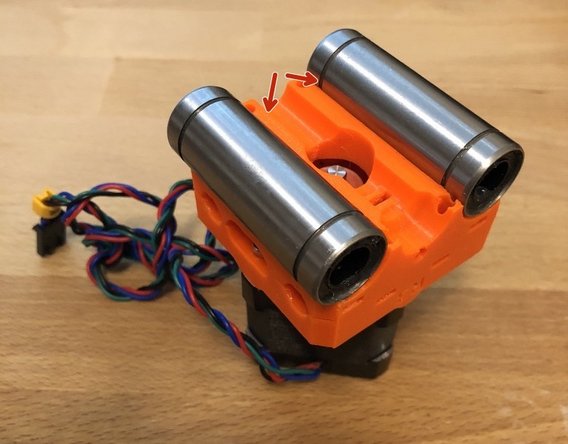

Place 2 x LM10LUU bearings on the z-carriage-front.

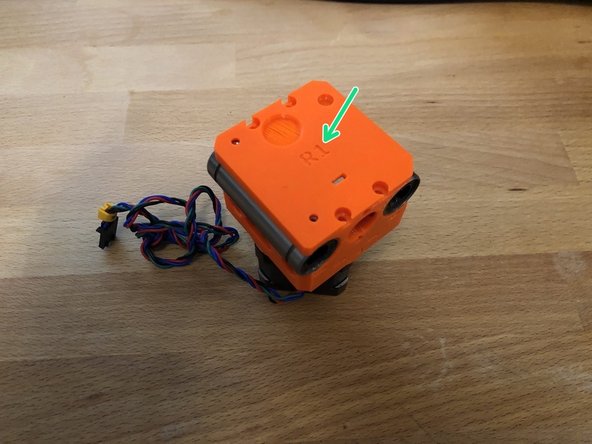

Place the z-carriage-back on top

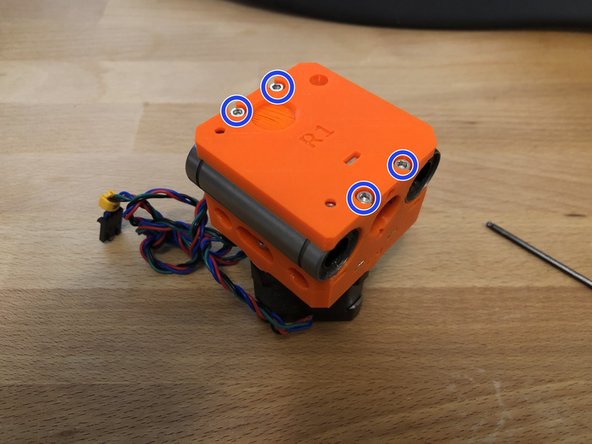

Secure the z-carriage-back with 4 x M3 30mm

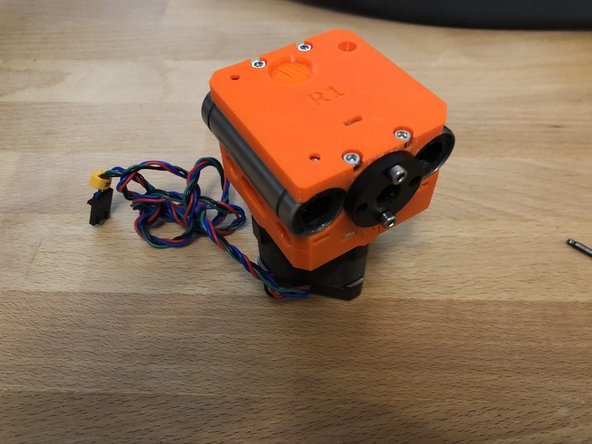

Using 2 x M3 20mm screws, attach the feed screw nut to the bottom of the z carriage assembly.

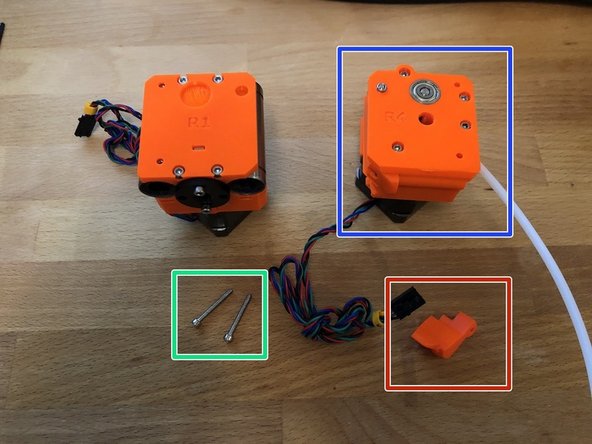

Gather the inspection window.

Gather 2 x M3 25mm

Gather extruder

Place the extrude on the z carriage

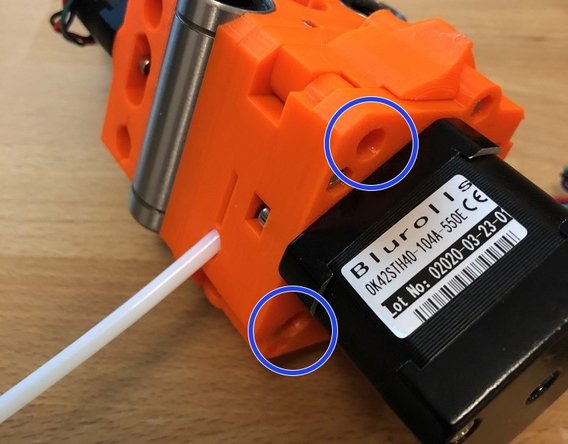

Place the inspection window in the extruder

Using 2 x M3 25mm screws, attach the extruder to the z carriage.

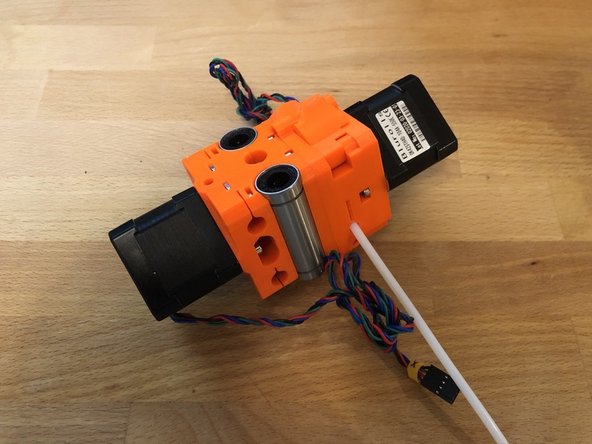

Eat some haribo.
