Filament Sensor Assembly

Written By: Tom Wilkie (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

7

Time Required

00:30:00

Sections

1

Flags

1

User-Contributed Guide

User-Contributed Guide

This guide is not managed by the site's staff.

  1. MINI-fsenzor-cover

    • MINI-fsenzor-cover

    • MINI-fsenzor-box

    • MINI-fsenzor-lever

    Edit

  2. Filament sensor board

    • Filament sensor board

    • Filament sensor cable

    Edit

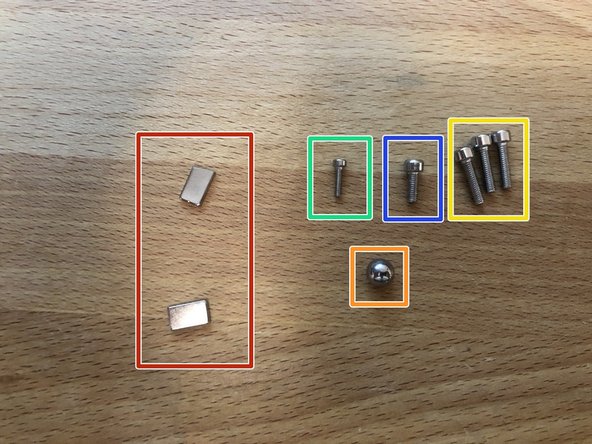

  3. 2 x magnets

    • 2 x magnets

    • 1 x M2 8mm

    • 1 x M3 8mm

    • 3 x M3 12mm

    • Ball bearing

    Edit

  4. Insert ball bearing into fsenzor-box as shown Add fsenzor-lever into fsenzor-box as shown Secure with 1 x M3 12mm screw.

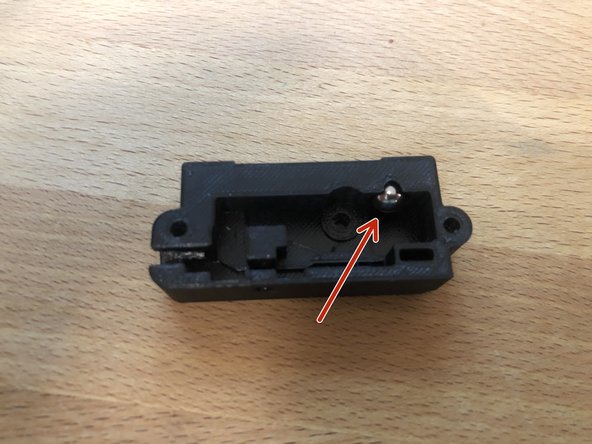

    • Insert ball bearing into fsenzor-box as shown

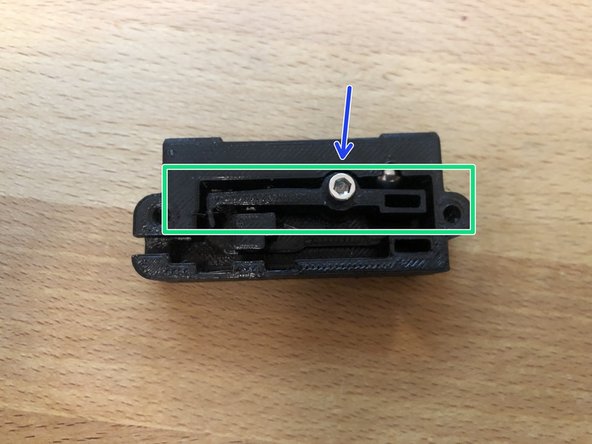

    • Add fsenzor-lever into fsenzor-box as shown

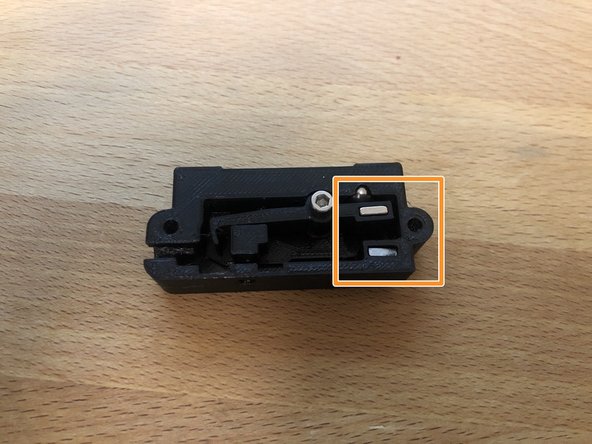

    • Secure with 1 x M3 12mm screw.

    • Add the two magnets such that the oppose each other, acting as a spring.

    Edit

  5. Attach sensor cable to sensor board. Ensure the red wire lines up with +5v Place the sensor board into the fsenzor-body as shown.

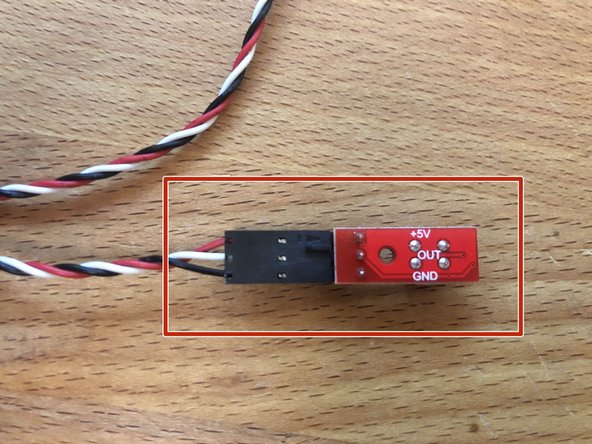

    • Attach sensor cable to sensor board.

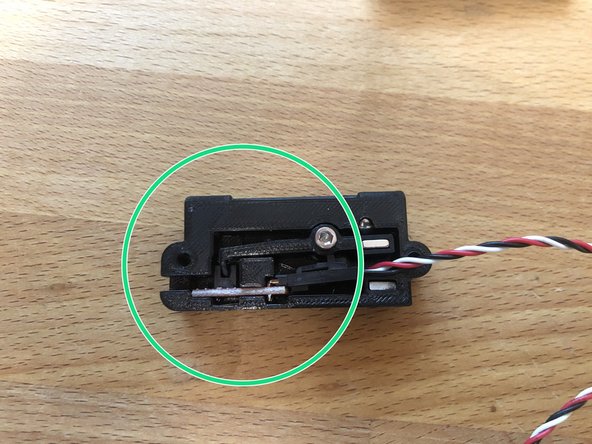

    • Ensure the red wire lines up with +5v

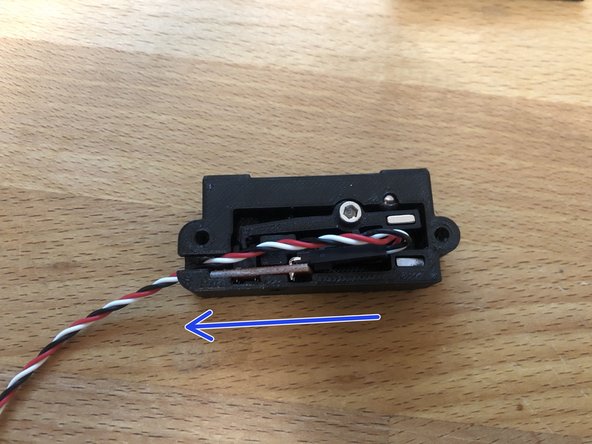

    • Place the sensor board into the fsenzor-body as shown.

    • Double the cable back over the board as shown.

    Edit

  6. Insert M2 x 8mm into side to secure electronics Add fsenzor-cover and secure with 2 x M3 12mm Add 1 x M3 8mm screen to secure bowden tube.

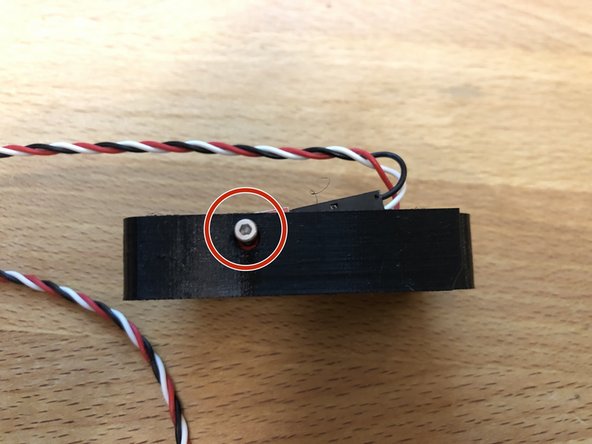

    • Insert M2 x 8mm into side to secure electronics

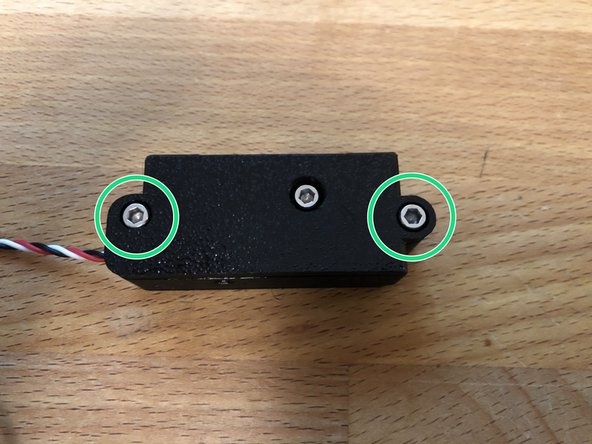

    • Add fsenzor-cover and secure with 2 x M3 12mm

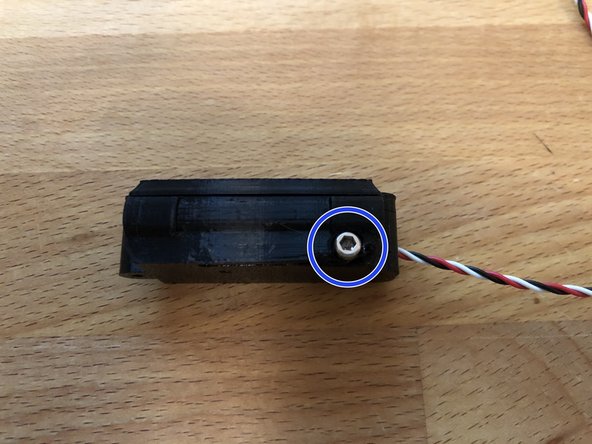

    • Add 1 x M3 8mm screen to secure bowden tube.

    Edit

  7. Eat more haribo.

    • Eat more haribo.
